Improved magnetic performance of Cobalt-based ribbons by nanocrystallization through magnetic annealing
Loading...
Files
Accepted version

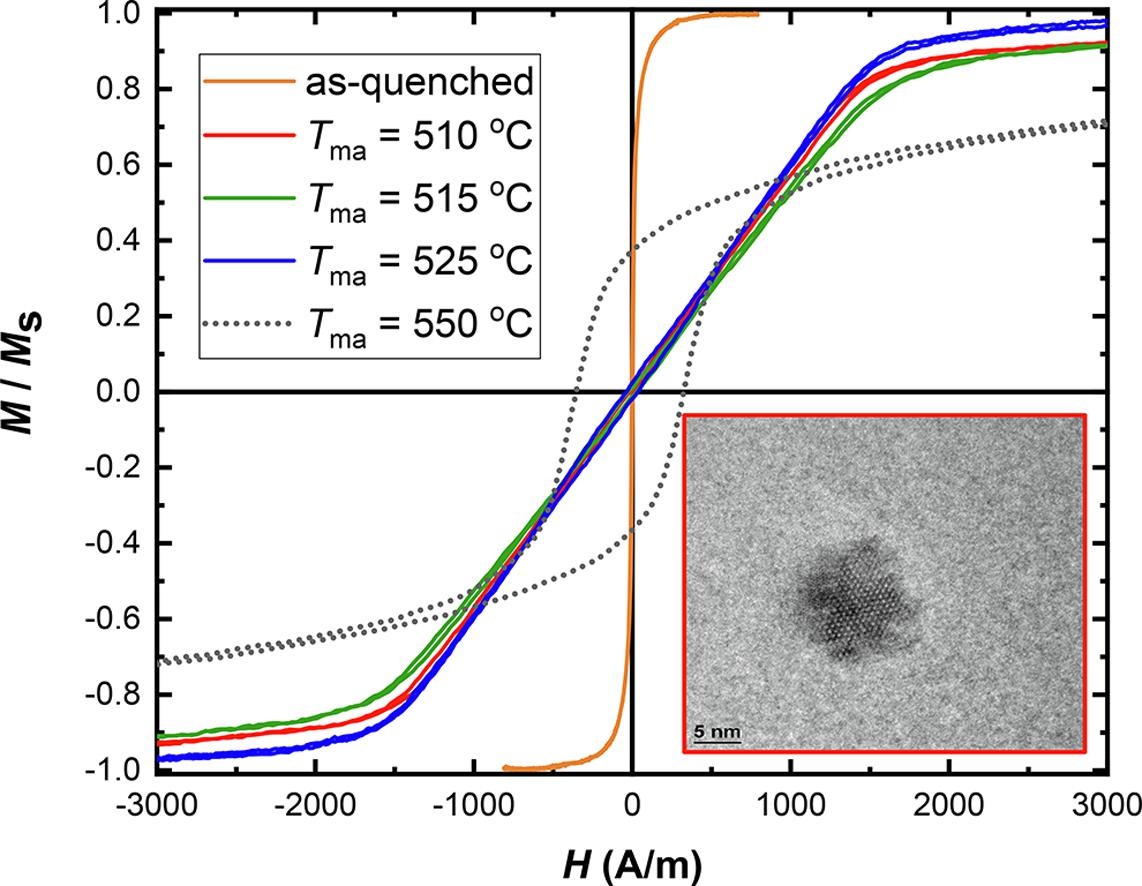

Graphical Abstract
Date
2020-02-19
Authors
Ahmadian Baghbaderani, Hasan
Masood, Ansar
Pavlovic, Zoran
Teichert, Niclas
Ó Mathúna, S. Cian
McCloskey, Paul
Stamenov, Plamen
Journal Title
Journal ISSN
Volume Title
Publisher
Elsevier
Published Version
Abstract
Phase transformation driven soft magnetic properties have been correlated through different stages of nano-crystallization of Co-based amorphous alloys, via transverse magnetic annealing, by combining structural, magnetothermal, domain imaging, and AC/DC magnetometry techniques. The nano-crystallization starts by nucleation and growth process of soft magnetic meta-stable, thermodynamically favored, Co23B6 phase with less nucleation activation energy compared to other stable phases. In the second crystallisation stage, Co2B and Co3B, as a semi-hard magnetic phase, are identified in the alloys, magnetically annealed at 525 and 550 °C, respectively. Field-induced anisotropy dominates over the residual contributions of magneto-crystalline anisotropy of the phases, precipitated after field annealing at 510, 515, and 525 °C. The anomalous loss is significantly reduced as by annealing in a transverse magnetic field due to the reorientation of the preferred magnetisation axis, and consequently, change in dominant magnetization reversal mechanism from domain wall motion to magnetization rotation. In addition, magnetic annealing causes a measurable decrease in the domain width, which, in turn, promotes pinning and inhibits domain wall motion, thus further favours coherent domain rotation as the primary mechanism of magnetization. The combined mechanism of nanocrystallisation and coherent magnetisation rotation accounts for a 70% decrement in the anomalous loss in the so-processed ribbons at 525 °C, which renders them attractive for applications in mid- and high-frequency power supplies and inverters.
Description
Keywords
Amorphous alloys , Nano-crystallization , Magnetic annealing , Soft magnetic properties , Magnetization reversal process , Magnetostructural transformations
Citation
Ahmadian Baghbaderani, H., Masood, A., Pavlovic, Z., Teichert, N., Ó. Mathúna, C., McCloskey, P. and Stamenov, P. (2020) 'Improved magnetic performance of Cobalt-based ribbons by nanocrystallization through magnetic annealing', Journal of Magnetism and Magnetic Materials, 503, 166630 (9 pp). doi:10.1016/j.jmmm.2020.166630
Link to publisher’s version
Copyright
© 2020 Elsevier B.V. All rights reserved. This manuscript version is made available under the CC BY-NC-ND 4.0 licence.
